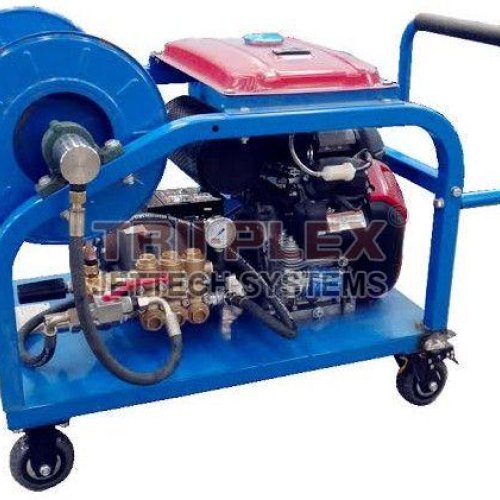

High Pressure Sewer Jetting Machine

Trii-plex Jettech Systems are Suppliers & Manufacturers of High Pressure Blasting Machine Hydro Blaster uses water pressure between 5000 PSI to 20,000 PSI as per requirement of Flow Rate & Pressure for many Industrial Cleaning applications such as Washing, Hydro Jetting, Water Blasting, Tube Cleaning of Heat Exchanger / Evaporator / Condenser etc. These High Pressure Plunger Pumps are design with pre set packings & concentric ceramic plungers to provide high pressure up to 1400 BAR.

Water-blasting is terms which describe the use of water propelled at high speeds to clean surfaces and materials. By focusing and pressurizing the water stream, the force generated can remove films and materials such as paint from walls, metal, and highways, rubber from airfield runways, sealants and membranes from concrete and chewing gum from sidewalks.

Technical Specification:

• Model No: NLTI-30.200
• Flow Rate: 30 LPM (7.93 GPM)
• Min. Pressure: 90 BAR (1300 PSI)
• Max. Pressure: 200 BAR (2900 PSI)
• Motor (HP): 7.5HP~17.5HP (Standard / Flameproof)

Technical Features about Plunger Pump:

• Pump Head: Forged Brass.
• Plungers: Solid Ceramic Plungers.
• Pump Main Body: Fully anodized Crankcase.
• Connecting Rod: High wear resistant Forged Alloy Steel.
• Crank Shaft: High wear resistant Forged Alloy Steel.
• Plunger Seal: Improved low and high pressure seals.
• Valve Assembly: High wear resistant Stainless Steel.
• Oil: 15W40.

Accessories we supply with systems:
01, Triplex Plunger Bare Pump
02, Electric Motor (Three Phase – Standard / Flameproof)
03, Platform (Base frame / Trolley mounted)
04, Pressure Gauge
05, Unloader Valve
06, Pressure Relief Valve
07, Electric Control Panel (Standard / Flameproof)
08, Trigger Operated Gun (Without Trigger available)
09, High Pressure Rubber Hose – 10 Mtrs
10, Low Pressure Suction & Bypass hose
11, Cleaning Nozzles, Tube Cleaning Nozzles
12, Flexible Lances for Tube Cleaning
13, Rigid Lances – 400mm, 600mm, 800mm, 1000mm

Applications:
1. Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc
2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3. Water injection
4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5. Construction industry, car / truck cleaning, mixing drum / tank cleaning, tar / cement / agglutinant cleaning, etc
6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc
7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8. Metallurgy plant, Concrete surface preparation Surface preparation, boil, feed tank, warehouse dirt cleaning, descale removal…
9. Metal cutting, steel plate cutting, thickness about 20mm
10. Aluminium smelters tank cleaning, rose box cleaning, molding machine cleaning, bauxite deposit removal..
11. Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…

Please mention Flow Rate (LPM), Pressure (BAR) & for which Application use when you sent Inquiry to us.

Additional Information:

• Item Code: NLTI_30-200
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A,RTGS CHEQUE NEFT
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: As per client requirement
• Delivery Time: Tantative
• Packaging Details: Bubble Plastic wrapping with wooden boxes, Export Packaging, As per client requirement we will doing packaging of High Pressure Triplex Plunger Pumps & Systems. Client Satisfaction is our MOTO.
