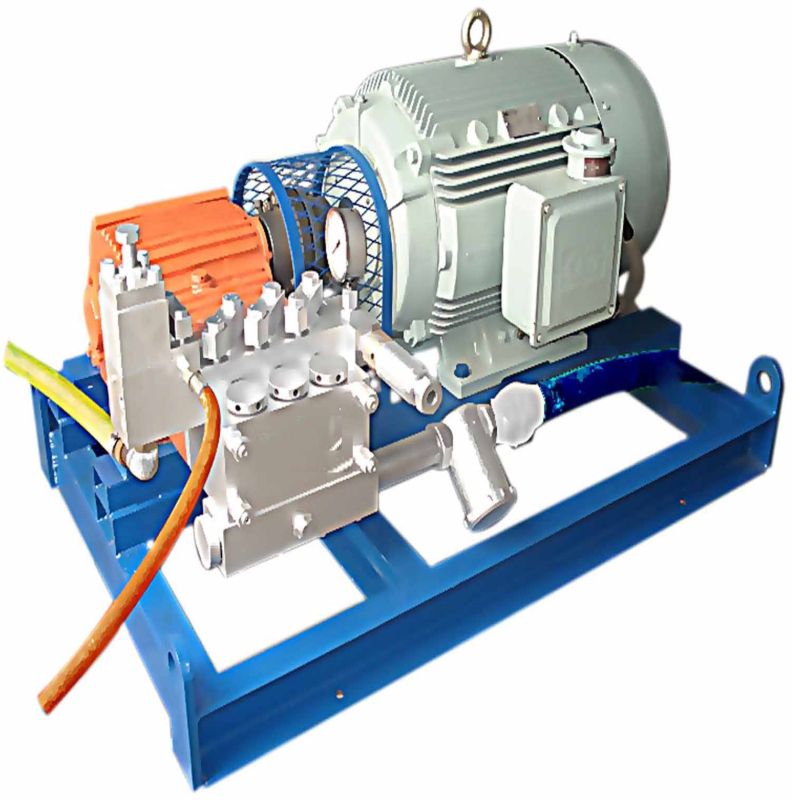

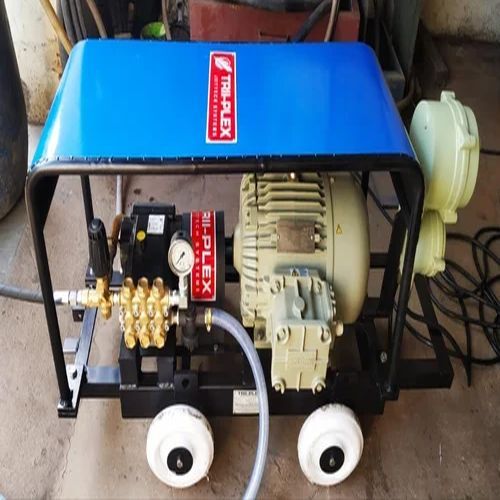

Hydro Test Pumps

Every Electric Hydro Testing Pumps are different and that is why the solutions of our Trii-plex Jettech Systems engineers are as diverse as your applications. For with our extensive expertise we can adapt every Pressure Testing Pump to your specific needs. Pressure and Flow Rates can be individually set and controlled and the pressure testing progression can be clearly logged. With Hydrostatic Testing, component or vessel is tested with a liquid (typically water), and pressurizing until test pressure is reached. Once the pressure is reached, the test is complete, and for other tests hydrostatic pressure must be held for a specific amount of time. Depending on the application, the hydrostatic testing can be used to help identify leaks, structural integrity, manufacturing flaws, wear, corrosion and burst pressure.

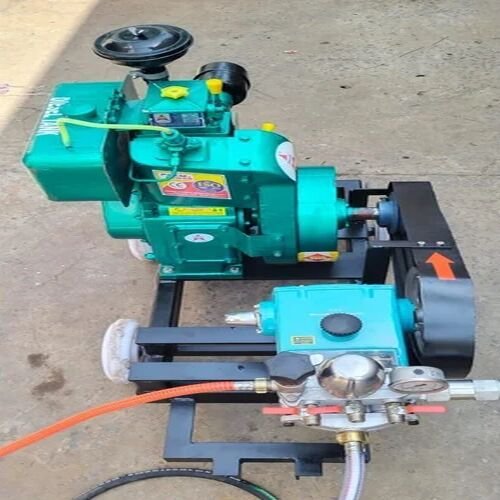

Trii-plex Jettech Systems are Manufacturers; Suppliers Exporters of Hydro Testing Pumps 30 LPM and Pressure 200 BAR with Electric Driven Diesel Driven.

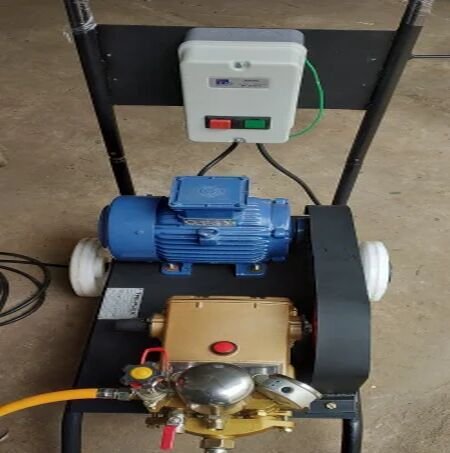

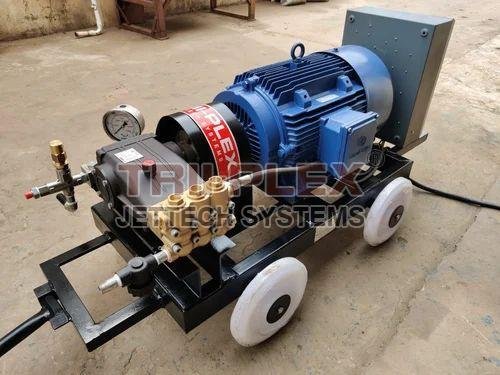

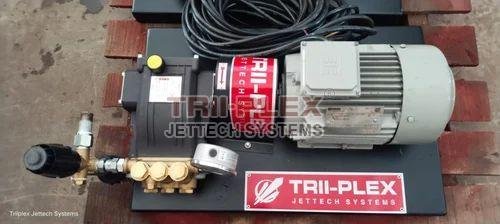

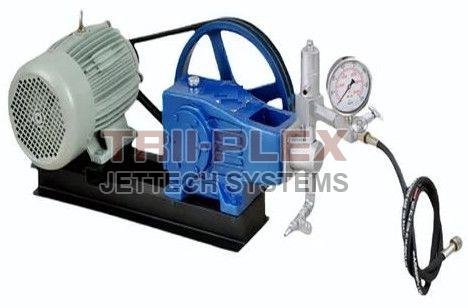

Electric Hydro Pressure Test Pumps are Characteristic capability to perform Hydro Test of Tubes, Pipes, Hoses, Cylinder, Hydro testing of Pressure Vessels Boilers, Hydrostatic Test Pump of Cross Country Pipe Lines, Valves, Castings, Components, etc. for Leaks, Cracks or Defects.

Technical Specification:

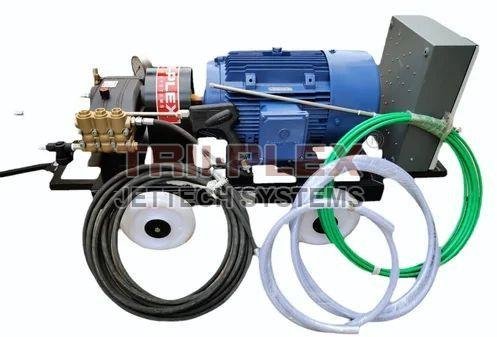

Model No: NLTI-30.200
Flow Rate: 30 LPM (7.93 GPM)
Min. Pressure: 90 BAR (1300 PSI)
Max. Pressure: 200 BAR (2900 PSI)

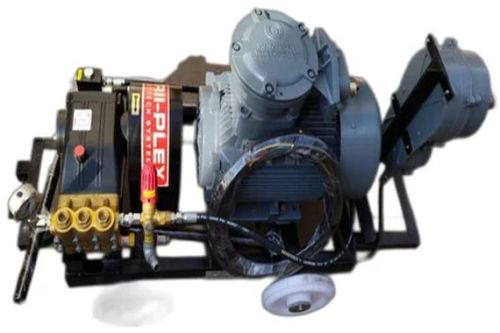

Motor (HP): 7.5HP~17.5HP (Standard / Flameproof)

Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40

Features:

• Robust Construction
• Low and Easy Maintenance
• Simple and Comfortable Design
• Easy Installation
• Volumetric Efficiency 95% (maximum)
• Extra Heavy duty Power Frame ensures uninterrupted smooth long life
• Easy to maintain, simple to repair nominal maintenance needed in case of breakdown

Applications:

1. Cross Country Pipelines
2. Pressure Vessels
3. C.I. Mains
4. Casting Parts
5. Boilers
6. Gas Cylinders
7. Pipes Tube Parts
8. Fire Extinguisher

Standard Accessories:

• Pressure Release Valve made from Brass Metal.
• Discharge Pressure Hose with Attachment of ½” BSP Length 10 Mtrs.
• Stainless Steel Glycerin filled Pressure Gauge with 4” inch Dial.
• Suction Discharge valve (NRV) Made from Stainless steel Material.
• Pressure Set Valve Made from Stainless Steel.

Optional Accessories:

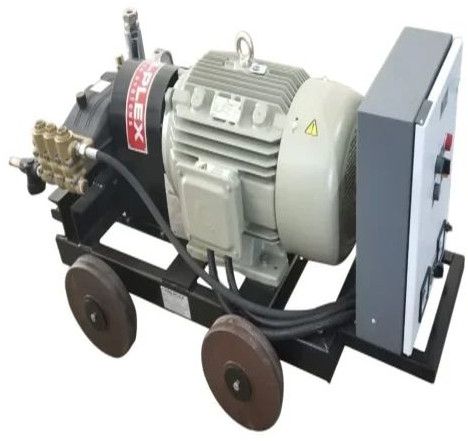

• Automation Control Panel

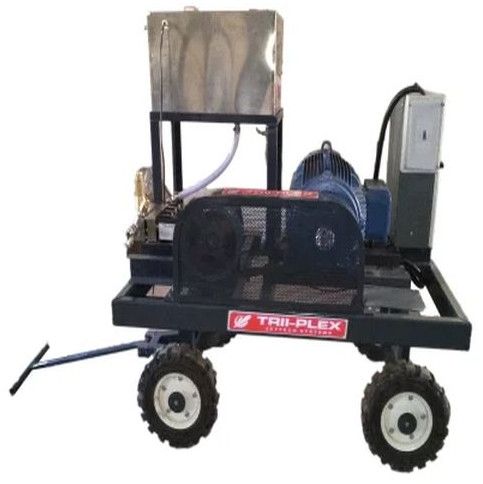

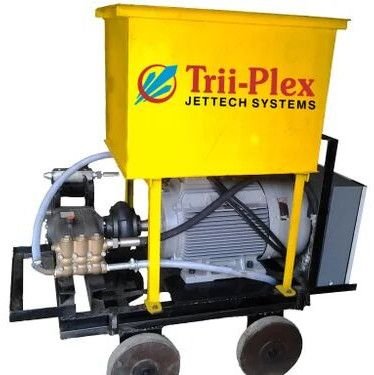

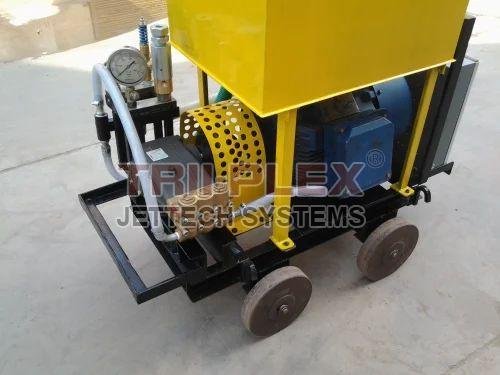

• Water Tank with water capacity of 50 liters

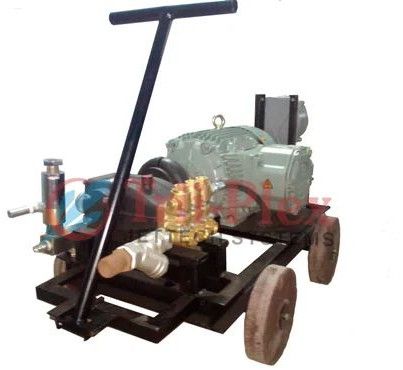

• Trolley Mounted

Additional Information:

• Item Code: NLTI_30_200
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A,Other
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: 25
• Delivery Time: Tantative
• Packaging Details: Bubble Plastic wrapping with wooden boxes, Export Packaging, As per client requirement we will doing packaging of High Pressure Triplex Plunger Pumps & Systems. Client Satisfaction is our MOTO.

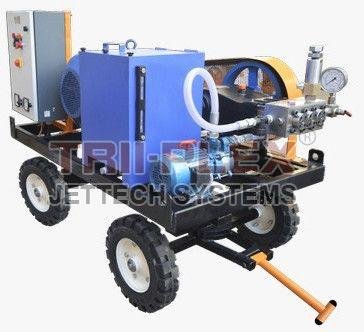

We can provide 4 lpm to 100 lpm , 35 bar to 1000 bar pressure Hydrotest Pump.

Hydro Test Pump. NHD Model.Hawk Made in Italy. Available in 3 hp to 5hp.
