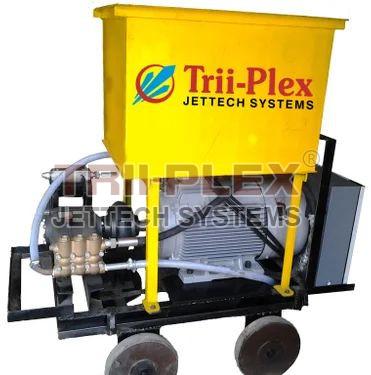

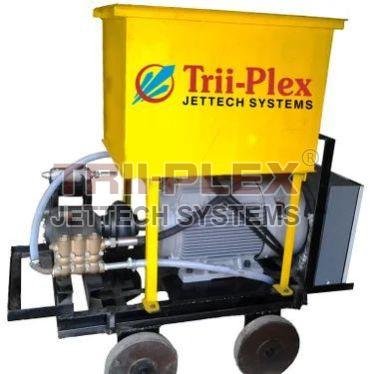

Hydrostatic Pressure Testing Pump

Trii-plex Jettech Systems are Manufacturers of Hydrostatic Pressure Testing Pumps Equipments of 21 LPM Flow Rate and Pressure 500 Kg/cm2 with Accessories, Spare Parts.

Hydrostatic Testing Pumps are Characteristic capability to perform Pressure Test of Tubes, Pipes, Hoses, Cylinder, Pressure Vessels Boilers, Hydrostatic Test of Cross Country Pipe Lines, Valves, Castings, Components, etc. for Leaks, Cracks or Defects.

Every Pressure Test is different and that is why the solutions of our Trii-plex Jettech Systems engineers are as diverse as your applications. For with our extensive expertise we can adapt every Test Pump to your specific needs. Pressure and Flow Rates can be individually set and controlled and the pressure testing progression can be clearly logged. With Hydrostatic Testing, component or vessel is tested with a liquid (typically water), and pressurizing until test pressure is reached. Once the pressure is reached, the test is complete, and for other tests hydrostatic pressure must be held for a specific amount of time. Depending on the application, the hydrostatic testing can be used to help identify leaks, structural integrity, manufacturing flaws, wear, corrosion and burst pressure.

Technical Specification:
Model No: PXI-21.500
Flow Rate: 21 LPM (5.55 GPM)
Min. Pressure: 250 BAR (3625 PSI)
Max. Pressure: 500 BAR (7250 PSI)
Motor (HP): 15HP~30HP (Standard / Flameproof)

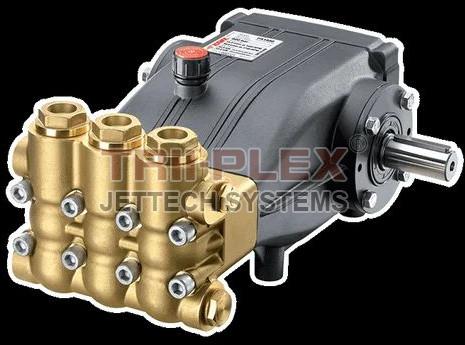

Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40

Features:

• Robust Construction
• Low and Easy Maintenance
• Simple and Comfortable Design
• Easy Installation
• Volumetric Efficiency 95% (maximum)
• Extra Heavy duty Power Frame ensures uninterrupted smooth long life
• Easy to maintain, simple to repair nominal maintenance needed in case of breakdown

Applications:

• Cross Country Pipelines
• Pressure Vessels
• C.I. Mains
• Casting Parts
• Boilers
• Gas Cylinders
• Pipes Tube Parts
• Fire Extinguisher

Special Features:
Electrically Motorized Driven System, Totally Dependable, Reliable and Efficient Performance.

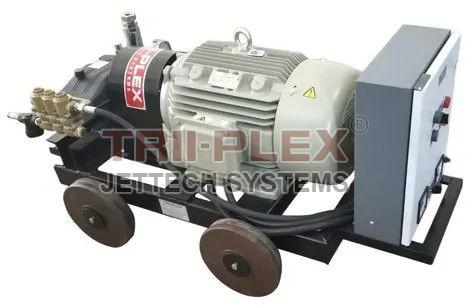

Standard Accessories:

• Triplex Plunger Bare Pump
• Electric Motor (Three Phase – Standard / Flameproof)
• Platform (Base frame / Trolley mounted)
• Pressure Gauge
• Pressure Relief Valve
• Electric Control Panel (Standard / Flameproof)
• High Pressure Hydraulic Rubber Hose – 10 Mtrs, 15Mtrs, 20Mtrs, 25Mtrs, etc
• Low Pressure Suction Bypass hose

Additional Information:

• Item Code: PXI_17_400
• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,Other
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: 25
• Delivery Time: Tantative
• Packaging Details: Bubble Plastic wrapping with wooden boxes, Export Packaging, As per client requirement we will doing packaging of High Pressure Triplex Plunger Pumps & Systems. Client Satisfaction is our MOTO.
